? 1D Barcode Scan ? 500 scans per sec ? Three-color LED (Green, Red & Blue)
Advanced Handheld High-Speed Laser Scanner
• Decode most 1D barcodes, incl. GS1 DataBar & PDF 417
• Superb scanning ability
• Proprietary Z-SCAN+ technology
• Rugged and ergonomic form factor
• Flexible communications
• Honored by iF Product Design Award 2009
The Z-3151HS is a high class handheld single-line laser scanner with a powerful scan engine.
It utilized the omnidirectional technology to transform seven laser lines into one and performs a superb scanning speed at 500 scans per second.
The built-in Z-SCAN+ decoding technology guarantees real-time scanning and accuracy, ensuring an unbeatable first read success rate.
The 32-bit MPU allows it to read most 1D barcode types, GS1 DataBar and PDF417.

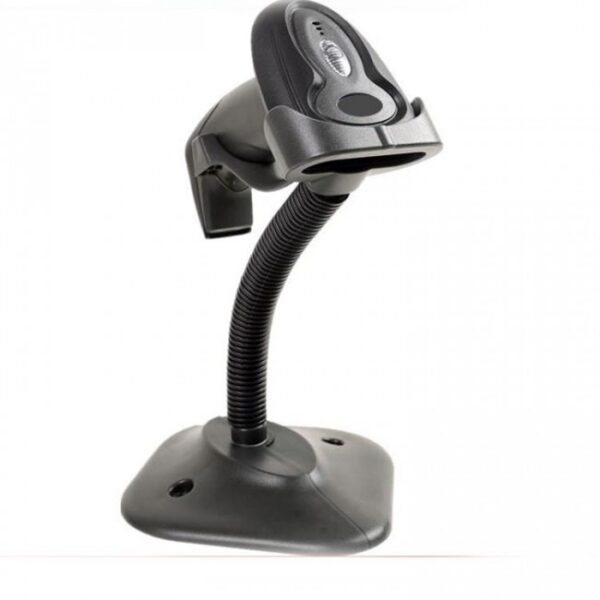

Name xLab Wired Full-Automatic Induction Laser Barcode Reader
Brand xLab
Model XBS-763A
Function ? 1D Barcode Scan ? 500 scans per sec ? Three-color LED (Green, Red & Blue)
Light Source 650 nm Visible Laser Diode (VLD)
Microprocessor 32 bit
Depth of Field 5 mil: 50 – 110 mm
7.5 mil: 30 – 150 mm
10 mil: 30 – 180 mm
13 mil: 35 – 210 mm
20 mil: 20 – 280 mm
40 mil: 0 – 350 mm
Scan Rate 500 scans per second
Print Contrast 30% @ UPC/EAN 100%
Indicator Three-color LED (green, red & blue)
Beeper Operation Programmable tone & beep time
System Interface Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Dimensions 107.8 × 58.3 × 155.2 mm (device only)
Cable Standard 2M straight
Input Voltage 5 VDC ±10%
Operating Current 250 mA
EMC CE & FCC DOC compliance, VCCI, BSMI
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (non-condensing)
Light Level 4, 500 Lux (fluorescence)
Drop Durability Designed to withstand 1M drops
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite
Remarks Advanced Handheld High-Speed Laser Scanner
Country of Origin United States
Made in China
