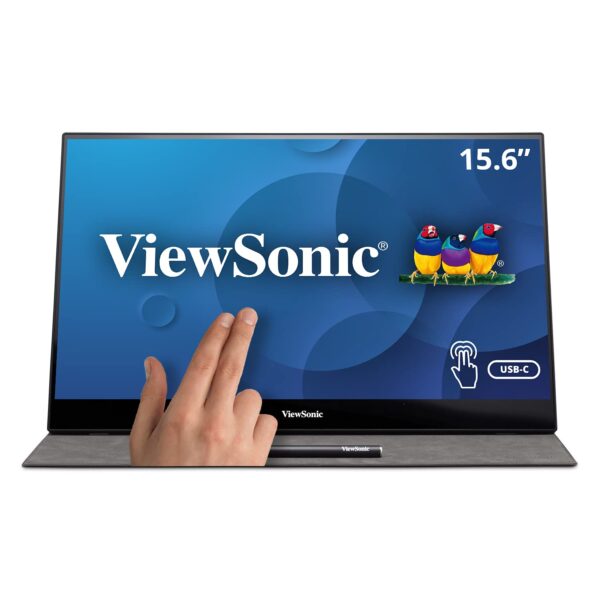

TD1655 15.6″ Portable 1080p Touch Monitor USB C
DISPLAY SIZE (IN.)
15.6
PANEL TYPE
IPS
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
800:1
DISPLAY
DISPLAY SIZE (IN.)
15.6
VIEWABLE AREA (IN.)
15.6
PANEL TYPE
IPS
RESOLUTION
1920 x 1080
RESOLUTION TYPE
Full HD (1920×1080)
STATIC CONTRAST RATIO
800:1
DYNAMIC CONTRAST RATIO
50,000,000:1
LIGHT SOURCE
LED
BRIGHTNESS
250 cd/m2
COLORS
262K
COLOR SPACE SUPPORT
6 bit
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
14ms
RESPONSE TIME (GTG W/OD)
6.5ms
VIEWING ANGLES
178º horizontal, 178º vertical
BACKLIGHT LIFE (HOURS)
15,000
PANEL SURFACE
Glossy, Hardness (6H)
COMPATIBILITY
PC RESOLUTION (MAX)
1920 X 1080
MAC® RESOLUTION (MAX)
1920 X 1080
CONNECTOR
USB TYPE C
2
MINI HDMI
1
TOUCH
TOUCH TECHNOLOGY
Projective Capacitive
TOUCH POINTS
10-Point Touch
AUDIO
INTERNAL SPEAKERS
0.8W (x2)
POWER
ECO MODE (CONSERVE)
6.0W
ECO MODE (OPTIMIZED)
6.9W
CONSUMPTION (TYPICAL)
8.6W
CONSUMPTION (MAX)
10.5W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.3W
POWER SUPPLY
Wall type (detachable type-C)
CONTROLS
PHYSICAL CONTROLS
1, 2, 3, 4, 5 (Power)
ON SCREEN DISPLAY
Image Adjust, Contrast, Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
VIDEO SIGNAL
FREQUENCY HORIZONTAL
15 ~ 82KHz
FREQUENCY VERTICAL
50 ~ 75Hz
VIDEO INPUT
DIGITAL SYNC
TMDS for miniHDMI (v1.4), Micro-Packet for USB-type C
ERGONOMICS
TILT (FORWARD/BACK)
0º / 60º
WEIGHT (IMPERIAL)
NET (LBS)
2.1
NET WITHOUT STAND (LBS)
2.1
GROSS (LBS)
5.1
WEIGHT (METRIC)
NET (KG)
1.0
NET WITHOUT STAND (KG)
1.0
GROSS (KG)
2.3
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
17.3 x 11.3 x 3.5
PHYSICAL (IN.)
14.0 x 8.8 x 0.6
PHYSICAL WITHOUT STAND (IN.)
14.0 x 8.8 x 0.6
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
440.0 x 288.0 x 89.0
PHYSICAL (MM)
355.0 x 223.0 x 16.0
PHYSICAL WITHOUT STAND (MM)
355.0 x 223.0 x 16.0
GENERAL
REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT, CEC, MX-CoC, Mexico Energy
PACKAGE CONTENTS
TD1655 Display, USB type-C to type-C cable, USB type-C to type-A cable, mini HDMI cable, Power Adapter, Passive Touch Pen, Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
WARRANTY
Three-year limited warranty on parts, labor and backlight

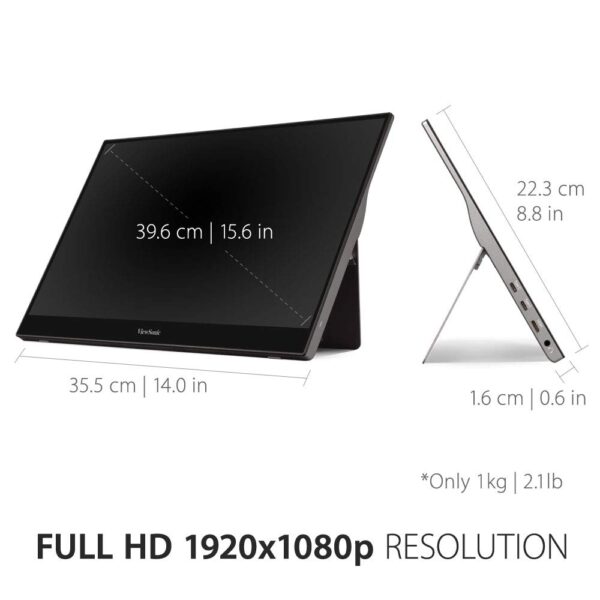

DIMENSIONS
14.0 x 8.8 x 0.6 in / 355.0 x 223.0 x 16.0 mm
