ugreen 50280 4In 1 Out USB VGA KVM Switch
Input: VGA portx4;USB 2.0 B male portx4
Output: VGA portx1;USB 2.0 A male portx4
Control two computers using a single USB keyboard,
USB mouse and monitor
Select button for easy switching
Maximum resolution up to 1920*1440
Plug and Play–no drivers required
Dimension: L136mm x W68mm x H24mm
4pcs USB B male cable(5ft) are included

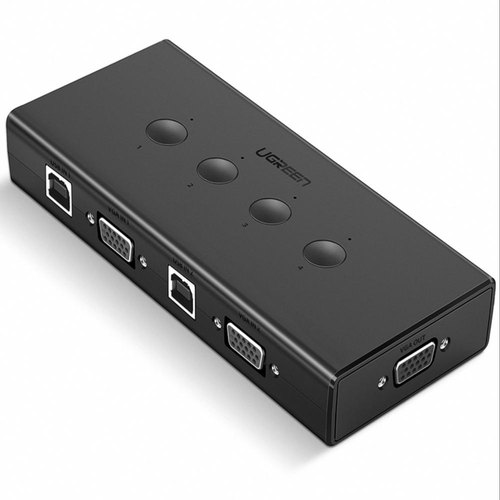

4 Port USB KVM VGA Switch Box
Allows you to control 4 computers with only one set of controls and display screen (mouse and keyboard). It is great for workstations, test stands or anywhere multitask between computers is required. Conveniently for you to control multi computers and provides a cost-effective way to share one USB keyboard, USB mouse, and VGA monitor to 4 computers at the same time.
Portable and Easy to Use
3 USB Type A connectors, 4 USB Type B connectors, 4 VGA IN connectors and 1 VGA OUT connector. The 4 In 1 Out VGA KVM Switch between four computers is controlled by the push button on the top of the unit. 4 USB Type B connectors support not only for data transfer from the printer but also for the extra power supply. So you do not need plug any power into the vga switch box.
1080P Full HD Higher Definition Output
This USB KVM switch supports high-definition image and supports maximum resolution up to 1920×1080@60Hz, backup compatible with 720P, 480P. Please note this VGA switcher only transfer video. For audio output, please directly connect your speaker to the 3.5mm interfaces of computer/PC.
Operating Systems
Windows 10/8/7 / XP / Vista (32/64-bit), Mac, Linux, Sun Solaris, DOS, Win3, WINNT, Netware, and Unix. The VGA Switcher Box also supports online games and DVR.
Note
Please make sure the VGA Input Connector 1 and USB B Connector 1 were plugged in the same Host. Every VGA IN and USB B IN is corresponding. Please Do NOT use VGA IN1 and USB IN2 mixed insertion.
Package Contents
1 x 4-Port USB KVM Switch Box
4 x USB Type A to B cables
1 x User Manual
