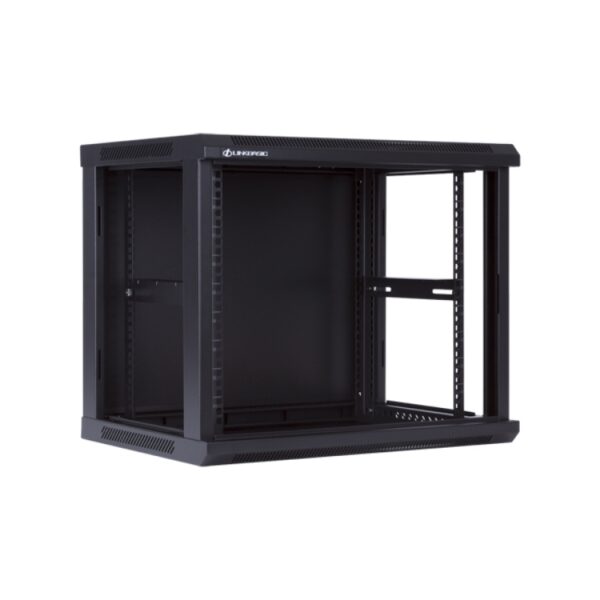

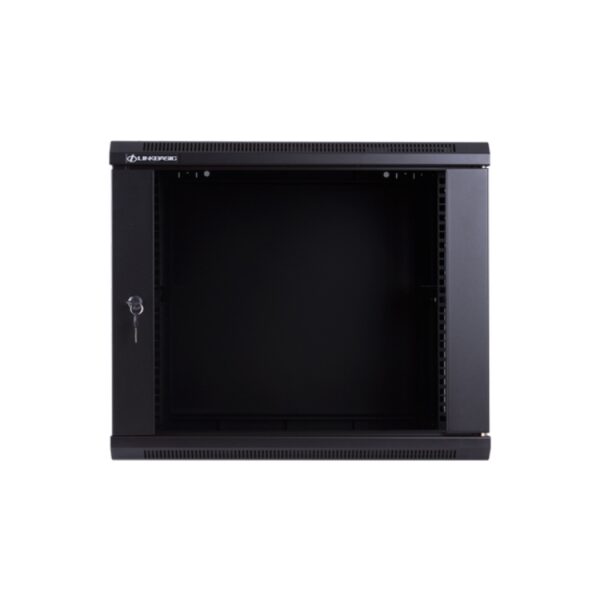

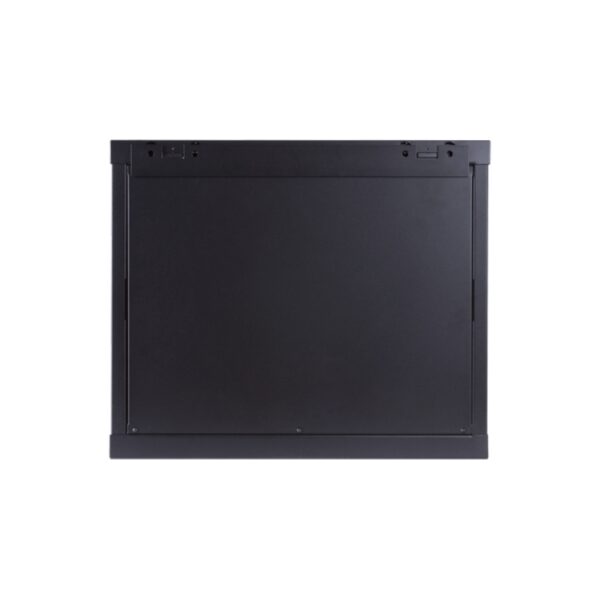

Linkbasic Hanging Rack Cabinet 19″ 9u 450mm Wcb09-645-baa-c

https://www.linkbasic.eu/en/hanging-rack-cabinet-19-9u-450mm-wcb09-645-baa-c

9 U wall box (Rear Door / Smoky Gray Glass door / Black Color)

DESCRIPTION
One-section WCB-series hanging cabinets of the mounting height 9U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

FEATURES
Standard equipment: mounting rail set
Side doors mounted on latches with a lock assembly option
A rack rail indicating the amount of units (U)
Two cable ducts – ceiling and floor
A frame with a load capacity of 60kg
Cold-rolled steel
Frame thickness: 1.2 mm
Mounting rail thickness: 1.5 mm
Side panel thickness: 1.2 mm
Protection class IP20
Surface finish: degreasing, etching, phosphating, powder coating
Protection against rust, oxidation, scratches, corrosion
Front door – glass
Available in black RAL9004
Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
Compatible with metric ETSI and 19-inch international standards
SPECIFICATION
Nominal height�����9U
Total outer height�����501mm
Outer width�����600mm
Outer depth
450mm

Mounting depth�����275mm
Colour�����Black RAL9004
Maximum load capacity�����60kg
Protection class�����IP20
Front doors�����Glass with a lock
Back doors�����n/a
Side panels�����Full steel dismounted on latches with a lock assembly option
Cable ducts�����2 pcs – ceiling and floor
Cable organizer�����No
Assembly kit�����10 pcs.
Frame thickness�����1.2mm
Mounting rail thickness�����1.5mm
Door thickness (steel)�����1.2mm
Glass thickness�����5.0mm
Side panel thickness�����1.2mm
Base thickness�����1.2mm
Cover thickness�����1.2mm
Additional information
– Cold-rolled steel
– Surface finish: degreasing, etching, phosphating, powder coating
– Protection against rust, oxidation, scratches, corrosion
– Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
– Compatible with metric ETSI and 19-inch international standards

Net weight�����?kg
Number of cartons�����1
Dimensions of cartons
1. ?x?mm

Weight of cartons
1. ?kg
