Quick Specs

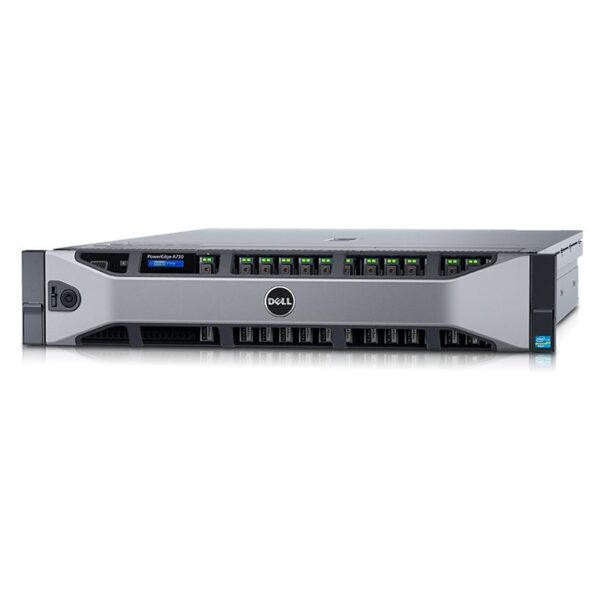

Figure 1 shows the appearance of Dell PowerEdge R730 Server.
Table 1 shows the quick spec.
| Product Model | Dell PowerEdge R730 Xeon E5-2603 v4 4GB 1TB SAS H330 Rack Server |
| Product Series | Dell PowerEdge R730 Server |
| Fully Customizable | Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 1TB SAS H330 Hard Drive and a 3 Year Warranty |
| Processor | Intel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz |
| Operating System | No Operating System |
| Memory | 4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
| Hard Drive | 1TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive |
| Drive Bays | Internal hard drive bay and hot-plug backplane: Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA |
| RAID Controllers | Internal: PERC S130 PERC H330 PERC H730 PERC H730P External: PERC H830 |
| Chassis | Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.) |
Product Details

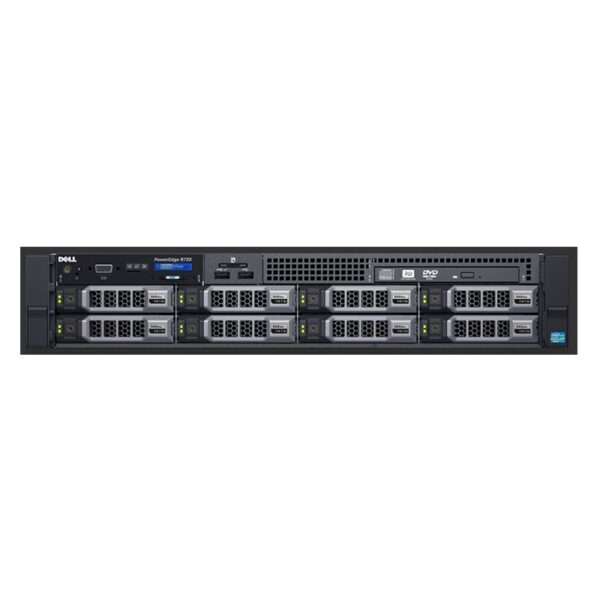

Figure 2 shows the 3.5-inch hard drive chassis of Dell PowerEdge R730 Server.
Note:
| ? | Power button | ? | USB management port/iDRAC Direct |
| ? | NMI button
System identification button |
? | vFlash media card slot |
| ? | Video connector | ? | USB port |
| ? | LCD menu buttons | ? | Optical drive |
| ? | Information tag | ? | Hard drives |
| ? | LCD panel | ? | Quick Sync |

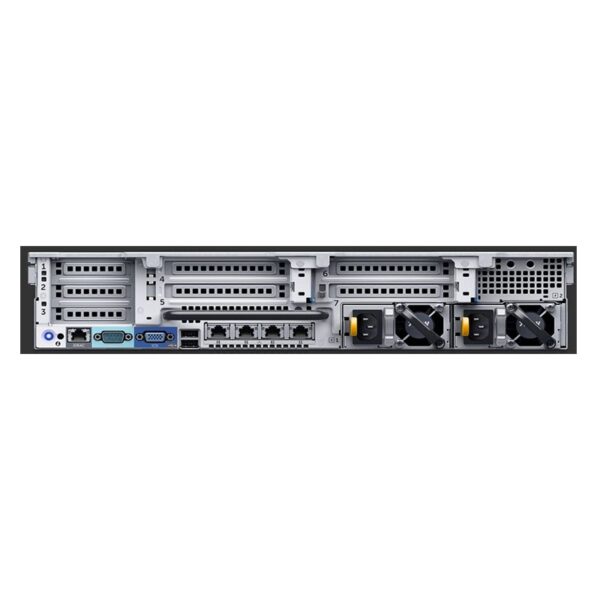

Figure 3 shows back panel of Dell PowerEdge R730 Server.
Note:
| ? | Full-height PCIe expansion card slot (4) | ? | Video connector |
| ? | Half-height PCIe expansion card slot (3) | ? | USB port |
| ? | System identification button | ? | Ethernet connector |
| ? | System identification connector | ? | Power supply unit 1 |
| ? | iDRAC8 Enterprise port | ? | Power supply unit 2 |
| ? | Serial connector |
Compare to Similar Item
Table 2 shows the comparison.
|
Product Model |
Dell PowerEdge R730 Xeon E5-2603 v4 4GB 1TB SAS H330 Rack Server |
Dell PowerEdge R730 Xeon E5-2620 v4 8GB 2TB SAS H330 Rack Server |
|
Product Series |
Dell PowerEdge R730 Server |
Dell PowerEdge R730 Server |
|
Processor |
Intel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz |
Intel® Xeon® E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz |
|
Operating System |
No Operating System |
No Operating System |
|
Memory |
4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width |
|
Hard Drive |
1TB Hard Drive |
2TB Hard Drive |
Dell Server Configuration
Table 3 shows the Dell R730 Server Configuration. You can contact us to order a R730 server according to this guide.
|
Model |
|
|
Description |
Adapt to virtually any workload with a scalable server featuring an optimal mix of memory, storage, processing and GPUs |
|
Processor |
Intel® Xeon® processor E5-2600 v4 product family |
|
Memory |
Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
|
PCI Slots |
Slot configuration #1: Slot configuration #2: |
|
Network Controller |
4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
|
Storage |
HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA |
