MIXERS
PA AUDIO MIXING CONSOLES – STEREO

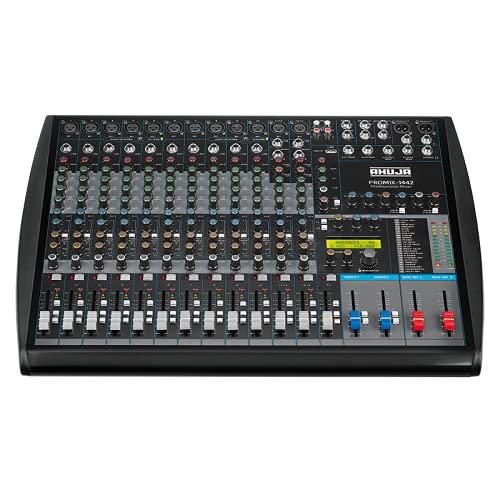

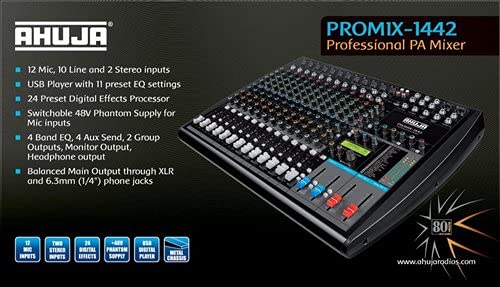

PROMIX-1442
With Built-in MP3 Player, 48V Phantom Supply on all Channels
AC Operation with 24 Digital Effects, 2 Group Outputs
Professional mixer with user-friendly construction & aesthetically designed side panels.
12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
Built-in MP3 player with 11 preset EQ settings.
Digital multi EFFECTS processor with 24 built-in effects.
LCD display for viewing the effects/USB settings.
All MIC inputs are through 3 pin F/XLR connectors.
All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
Pre/Post selector switch for AUX1 and AUX2 in each channel.
Channel MUTE switch provided on each individual channel.
Peak LED for signal clipping indication. Signal LED for input signal indication.
Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
Stereo Tape Playback Input through L&R RCA sockets.
Stereo Tape Output through L&R RCA sockets.
Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
L&R AUX RETURN inputs with level control. PFL switch on each channel.
Headphone output with Level Control for output monitoring.
Operates on 240V 50Hz AC mains.
MIC INPUT Impedance/Gain
2k? Balanced/65dB
LINE INPUT Impedance/Gain
20k? Balanced/45dB
STEREO INPUT (L/Mono & R)
.
Impedance/Gain
10k? Balanced/20dB
THD
